Our Services

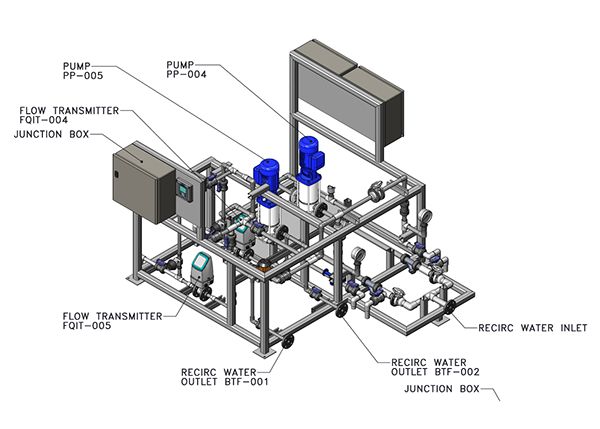

Basic and Detailed Engineering

  • Plant Layout
  • Equipment Layout
  • General Piping Layout
  • Stress Analysis using CAESAR II
  • 3D Modelling using Autoplant, PDS, PDMS,SP3D
  • Battery Limit drawings
  • Nozzle Orientation Plan
  • Isometrics with MTO
  • Line List & Tie-In List
  • Piping Material Specification
  • Pipe Thickness Calculation
  • Design Review With Process / Client
  • Piping Support Design & Drawing
  • Technical Specification for piping components.
As Built Data Collection

  • SPPID, SPEL, SPI data updation
  • All Type of Drafting Based on AutoCAD and Microstation
  • Annotation For The Drawing Extracted From 3D Application
  • All type of 3D model as built updation using SP3D, PDS, PDMS
Laser Scanning

  • 3D Model Delivery
  • Isometric Extraction
  • Layout Extraction
Manpower Services

  • Engineers of All discipline
  • Designers and checkers of all disciplines.
  • Stress and Material Engineers
  • 2D Draftsmen
  • Site Engineers

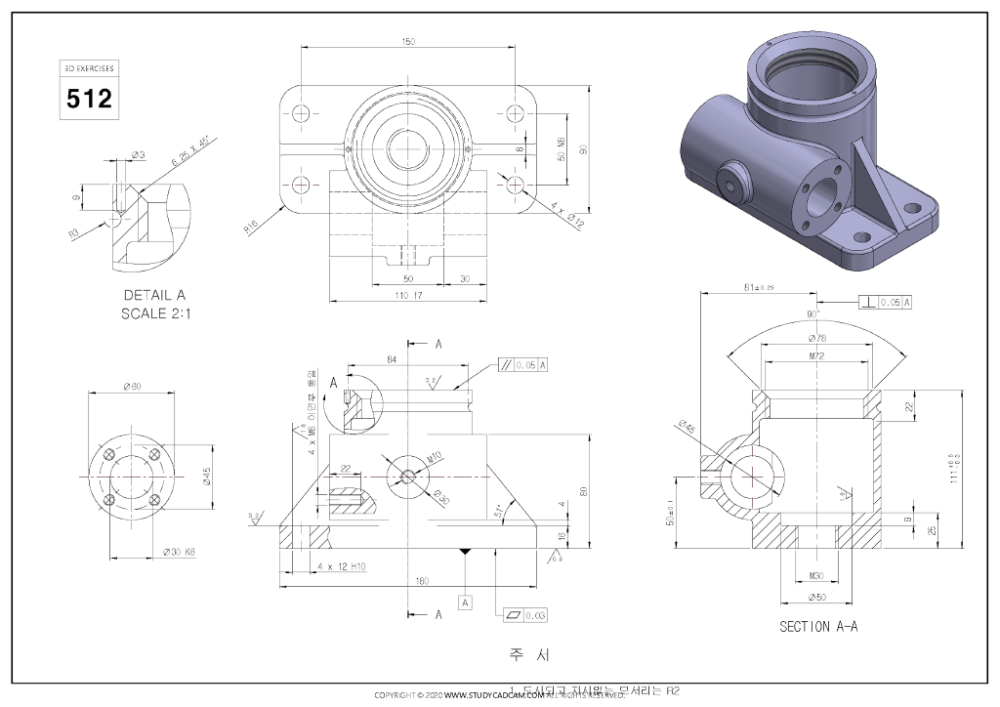

3D and 2D Administration Activity

  • Project Set-Up
  • Server And Client machine Configuration
  • Reference Database Creation (Piping Specification Creation)
  • Isometric Setup
  • 2D drawing Extraction Setup
  • Support Customization As Per Company Standards
  • All Discipline Reports Customization
  • Project Archival And Backup Procedure
  • All Discipline 3D modeling
  • As Built 3D modeling
  • Client Review Presentation
